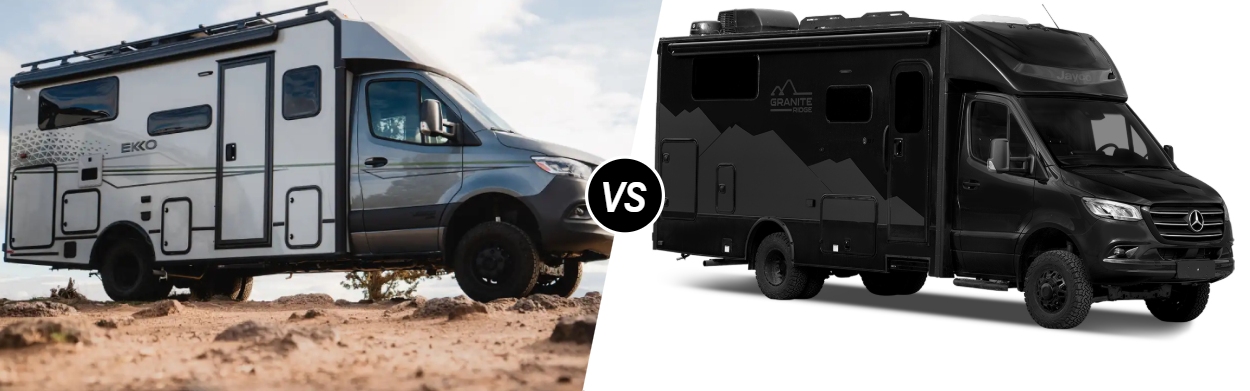

2026 Winnebago EKKO Sprinter vs 2026 Jayco Granite Ridge
The 2026 Winnebago EKKO™ Sprinter enters the Class C arena with true all-season engineering, off-grid stamina, and a flexible lounge that adapts to the moment. Built on the Mercedes-Benz® AWD Sprinter chassis with elevated ground clearance and all-terrain tires, the EKKO Sprinter delivers confident traction and a composed ride. The coach integrates a heated gear garage with L-track tie-downs, a dry/wet bath with a pivoting wall, and twin beds with the WinnSleep® System and a flex bed kit. Pair that with a 50-gallon fresh tank, Truma® AquaGo® tankless comfort plus water heater with recirculation, and a robust solar-lithium energy package, and the result is extended independence away from hookups. Our team at Winnebago Motor Homes highlights how this practical design outpaces the Granite Ridge in usably smart details where it counts day to day. For customers in Rockford, IL planning weekenders from Chicago to a long retreat near Madison, the 2026 Winnebago EKKO Sprinter vs 2026 Jayco Granite Ridge comparison ultimately comes down to capability, comfort, and configurability. We believe the EKKO Sprinter aligns with how modern travelers pack gear, manage power, and seek all-weather confidence.
| Feature | 2026 Winnebago EKKO Sprinter | 2026 Jayco Granite Ridge |
|---|---|---|
| Mercedes-Benz® AWD Sprinter chassis | Yes | Yes |
| All-terrain tires | Yes | Yes |
| Four-mode multifunction lounge | Yes | No |
| Pop-top sleeping area available | Yes | No |
| Heated gear garage with L-track tie-downs | Yes | Yes |
| Truma® AquaGo® tankless water heater w/recirc | Yes | No |
| Dry/wet bath with pivoting wall | Yes | No |
| Dedicated second alternator for coach battery | Yes | No |
| Digital rearview mirror | Yes | No |
| Factory generator delete with 630Ah lithium | Yes | No |
Floor Plans - Winnebago Dealer serving Rockford, IL

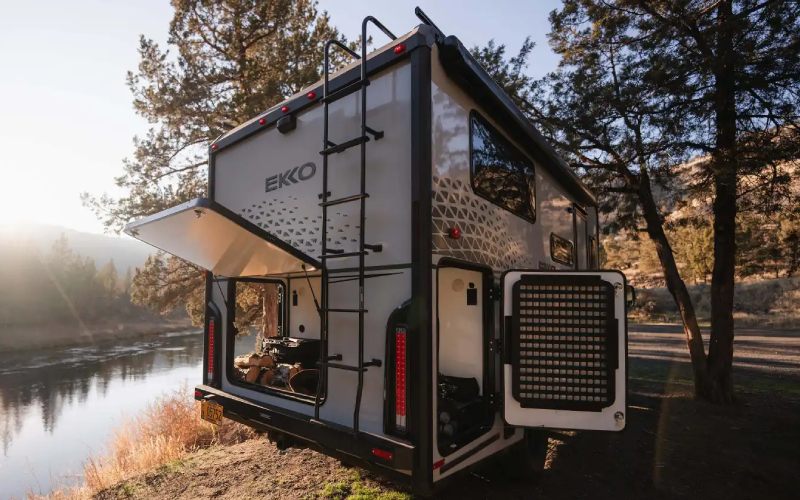

Winnebago centers the EKKO Sprinter lineup on the 23B, a meticulous floor plan that seats four with forward-facing belts, sleeps three or five with the available pop-top, and converts its new multifunction lounge into four distinct modes: passenger seating with a pull-up table, opposing side sofas, a U-shaped dining space for up to five, and a side-to-side sleeping surface. The rear bedroom features 32-by-80-inch twin beds that convert with a flex kit, while the heated gear garage expands packing options for bulky equipment. At 24 feet 6 inches long on a 170-inch wheelbase, the EKKO Sprinter builds on a stable, compact footprint that is as comfortable in towns as it is on trailheads. By contrast, Jayco’s Granite Ridge offers two chassis-based floor plans with near-identical living zones: the 22T on the Ford® Transit 350HD AWD at 23 feet 5 inches with an L-shaped dinette lounge, and the 23S on the Mercedes-Benz® 3500 AWD at 25 feet 2 inches with a 68-inch bench and dual tables. Both Granite Ridge layouts pair twin beds and a wet bath and add a heated rear garage, with the 23S gaining six extra inches of garage length. The 2026 Winnebago EKKO Sprinter vs 2026 Jayco Granite Ridge decision, however, hinges on the EKKO’s uniquely adaptable lounge and available pop-top that redefine small-space flexibility.
Features - 2026 Winnebago EKKO Sprinter in Rockford, IL

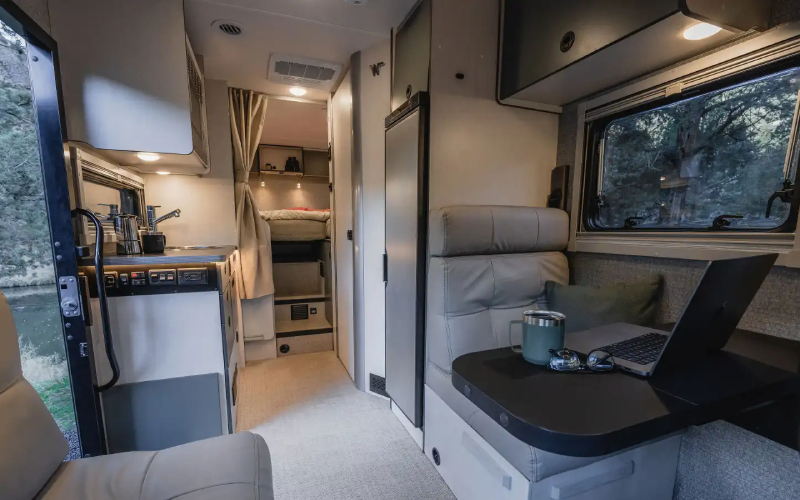

On the road, the EKKO Sprinter’s Mercedes-Benz driving suite stands out with MBUX® Multimedia System with navigation, Apple CarPlay® and Android Auto™, a digital rearview mirror, Blind Spot Monitoring, Lane Keeping Assist, Attention Assist, Traffic Sign Assist, and DISTRONIC PLUS® adaptive cruise control. The coach usability advantages continue inside: the four-mode multifunction lounge; a flexible galley with a portable single-burner induction cooktop and microwave-convection oven; tinted dual-pane euro acrylic windows; and a dry/wet bath with a pivoting wall for more elbow room. Systems are engineered for winter readiness with all-season insulation, a heated holding tank compartment above the floor, Truma® VarioHeat™ comfort heat, and the Truma AquaGo tankless comfort plus water heater with recirculation for instant hot water. Energy confidence is bolstered by a dedicated second alternator to charge the coach battery bank, 2,000-watt pure sine wave inverter, 320-amp-hour Lithionics® lithium battery with heating and Bluetooth control, and up to 530 watts of integrated solar depending on configuration. Granite Ridge offers strong equipment of its own—dual-pane windows, internal holding tanks, a heated garage, standard solar and lithium storage, and on the 23S, Starlink internet, a roof rack, collapsible ladder, and Firefly app integration. Even so, the EKKO Sprinter’s digital mirror, multi-mode lounge, AquaGo recirculation, second alternator, and available pop-top combine to give our customers in Rockford, IL more ways to travel farther with fewer compromises.
Winnebago EKKO Sprinter vs Jayco Granite Ridge Specifications
The EKKO Sprinter 23B measures 24 feet 6 inches long, 7 feet 2.5 inches wide, and 10 feet 11 inches tall, with a 6-foot 8-inch interior height and 170-inch wheelbase. Key capacities include 50 gallons fresh, 51 gallons gray, and a continuous hot water system. The diesel fuel tank holds 24.5 gallons, GVWR is 11,030 pounds, and GCWR is 15,250 pounds. Exterior storage totals an impressive 64 cubic feet, anchored by the heated gear garage. Standard electrical includes a 2,000-watt inverter with 80-amp charger, a 320Ah Lithionics lithium house battery with heating, a dedicated second alternator, and a solar suite comprising two 215-watt rigid panels plus one 100-watt panel, with an additional 220-watt flexible panel when the pop-top is selected. A 2,500-watt LP generator is standard, and a no-generator build is available with a 630Ah Lithionics upgrade. Granite Ridge spans 23 feet 5 inches to 25 feet 2 inches depending on floor plan, with GVWRs of 11,000 pounds (22T) and 11,030 pounds (23S) and GCWRs of 15,000 and 15,250 pounds respectively. Its standard 360-watt solar array pairs with a 3.9kWh 12V lithium battery and a 2,800-watt gas generator on the 22T or 2,500-watt LP generator on the 23S. Both platforms employ AWD chassis options and dual-pane acrylic windows; the EKKO Sprinter further emphasizes above-floor, heated tanks and a larger fresh capacity to extend off-grid stays.
Optional Accessories - Winnebago Dealership in Rockford, IL
Winnebago equips the EKKO Sprinter with targeted options that broaden its mission. Customers can choose a pop-top sleeping area with FROLI® sleep system to bring the sleeping count to five, order an entertainment package with a Bluetooth® soundbar and 24-inch HDTV for movie nights, and add a batwing awning for wraparound patio shade. Storage-focused travelers can select a luggage rack when the pop-top is not installed, or opt to remove exterior graphics for a stealth profile. For the power user, the factory generator delete plus 630Ah Lithionics lithium pack transforms the coach into a quiet, high-capacity energy platform supported by a dedicated second alternator and solar—ideal for remote sites. Granite Ridge offers compelling choices such as a 7-foot rear awning, pull-out exterior kitchen, and a 32-inch smart LED TV with inside and exterior mounts, with Starlink satellite internet standard on 23S and available on 22T. Both models allow patio awning deletion. Our team at Winnebago Motor Homes can also help tailor practical add-ons such as cargo organization in the heated gear garage, soft goods, and travel-ready power accessories so your coach leaves our store in Rockford, IL optimized for your first trip.
Request more 2026 Winnebago EKKO Sprinter information
When customers weigh the 2026 Winnebago EKKO Sprinter vs 2026 Jayco Granite Ridge, both bring AWD confidence, efficient layouts, and modern tech to adventurous Class C travel. The difference is how effortlessly the 2026 Winnebago EKKO Sprinter stretches each day’s possibilities. From its four-mode lounge and optional pop-top to AquaGo recirculation, a dedicated second alternator, and an available high-capacity lithium build without a generator, the EKKO Sprinter stacks advantages that matter on the road, at camp, and in shoulder-season weather. Add the digital rearview mirror, thermal cab blinds and divider, the WinnSleep® bedroom, and a heated, L-track garage, and you have a compact coach that acts like a bigger one without giving up drivability. Our staff at Winnebago Motor Homes is ready to walk through floor plan nuances, power strategies, and packing ideas that fit your travel style. Visit us in Rockford, IL to see how this design ethos translates into day-to-day convenience and quiet confidence. For shoppers who prioritize four-season readiness, flexible space, and low-hassle power, the EKKO Sprinter is the right call—and we are here in Rockford, IL to help you make the most of it.
